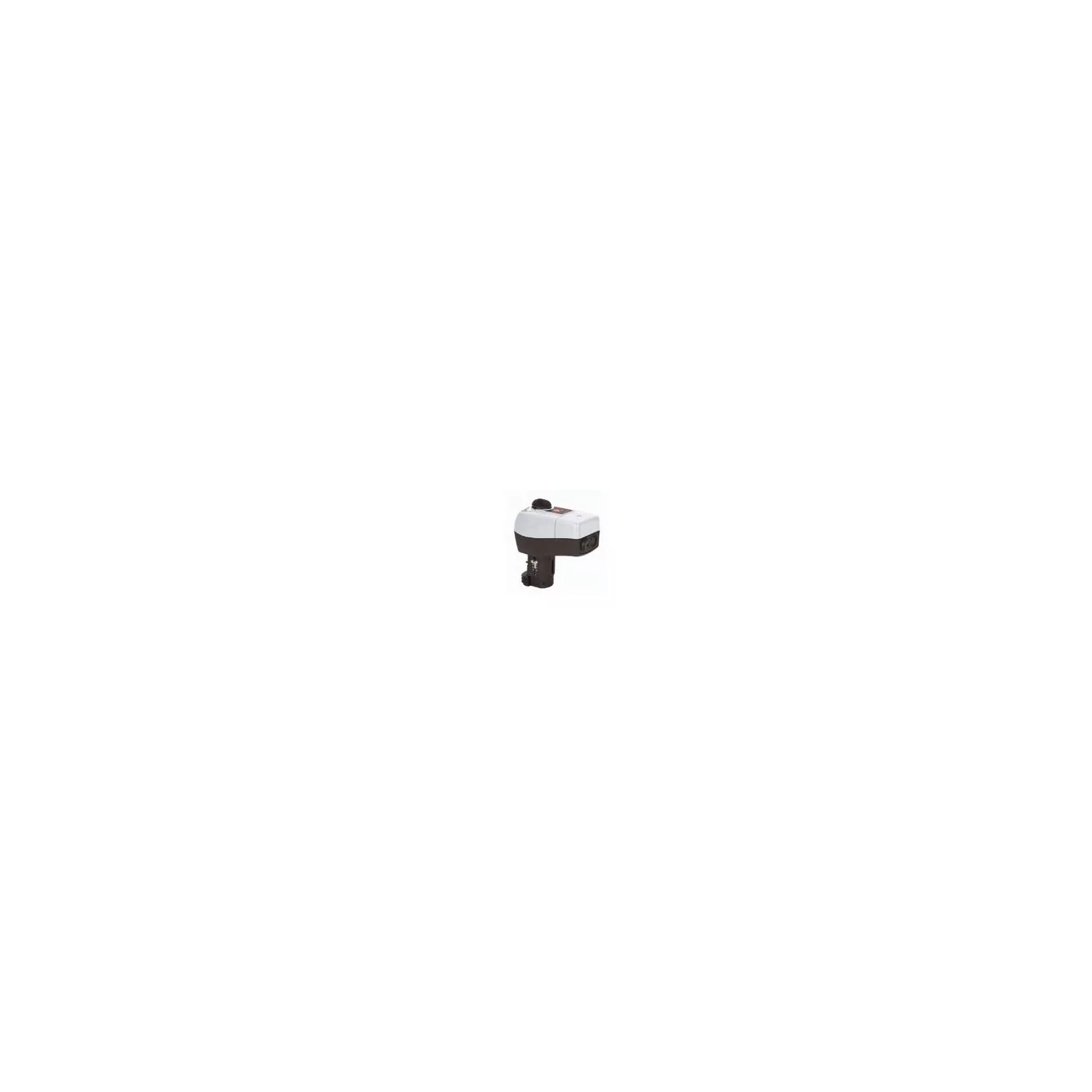

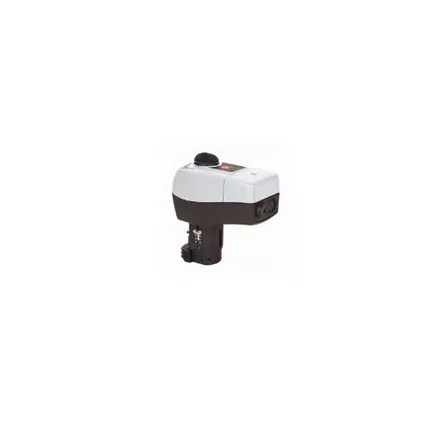

Servomoteur AMV 435 230 Volts 082H0163 3 points
Moteur pour vanne VRG 3 Fonte ou laiton
Code number | 082H0163 | |
Supply voltage | 230 V ac | |
Frequency | 50/60 Hz | |
Power consumption | 2 VA | |
Enclosure | 54 IP | |
Control type | 3-point | |
Stem force | 400 N | |
Max. Stroke | 20 mm | |
Spindle speed | 7.5 s/mm | |
Safety function | 0 | |
Manual operation | Yes | |
Spring down (return) | No | |
Spring up | No | |
Speed type | Standard | |
Min. ambient temperature | 0 °C | |
Max. ambient temperature | 55 °C | |
Min. storage temperature | -40 °C | |
Max. storage temperature | 70 °C |
